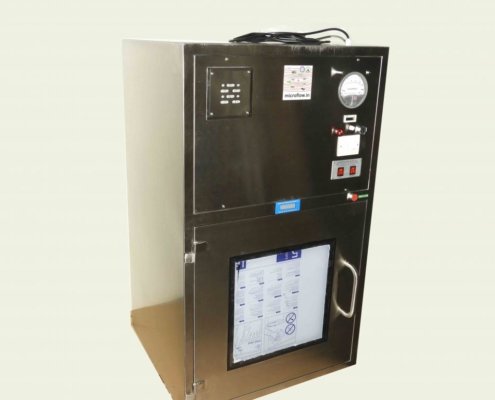

Dynamic Pass Box
The comprehensive range of Active Pass Box offered by us is self-contained units, which is installed at the entrance to clean rooms.
These boxes help to minimize the amount of particulate contamination entering the clean room and also ensure to reduce the operator traffic.
The extensive range of equipment and material is passed into the clean room via the pass box, as these are fitted with a mechanical interlock system that prevents both doors from being opened at the same time.
Our range is highly affordable way to maintain the cleanliness of room, easy to install and adaptable to different working conditions.

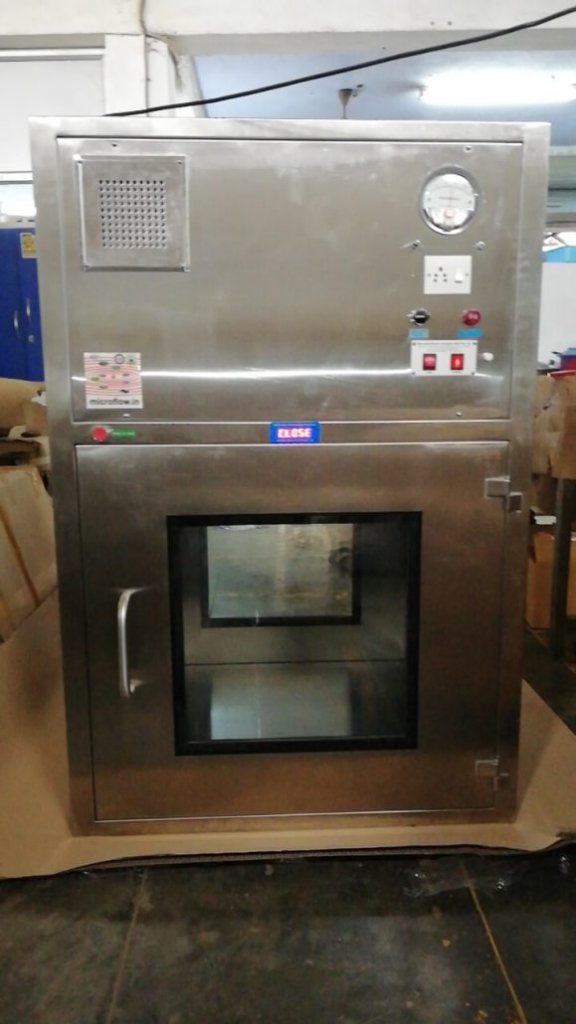

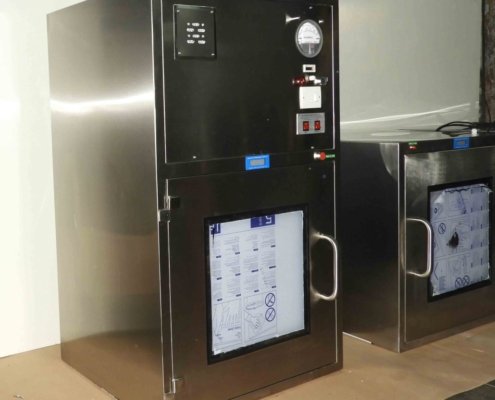

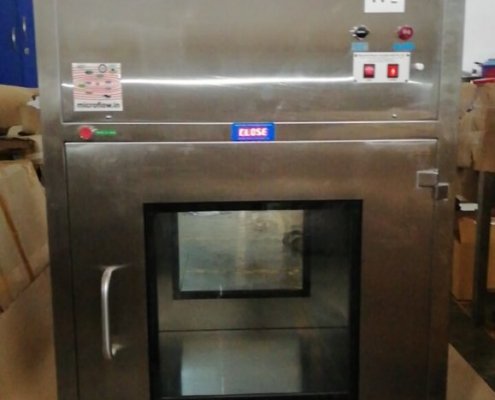

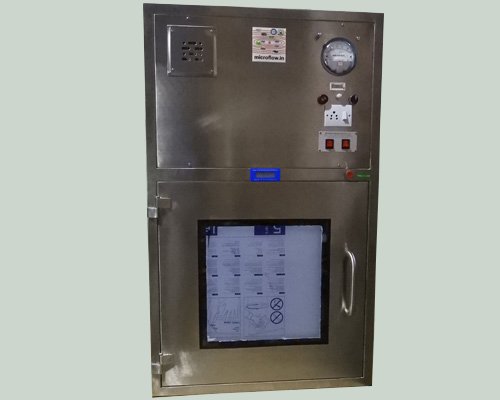

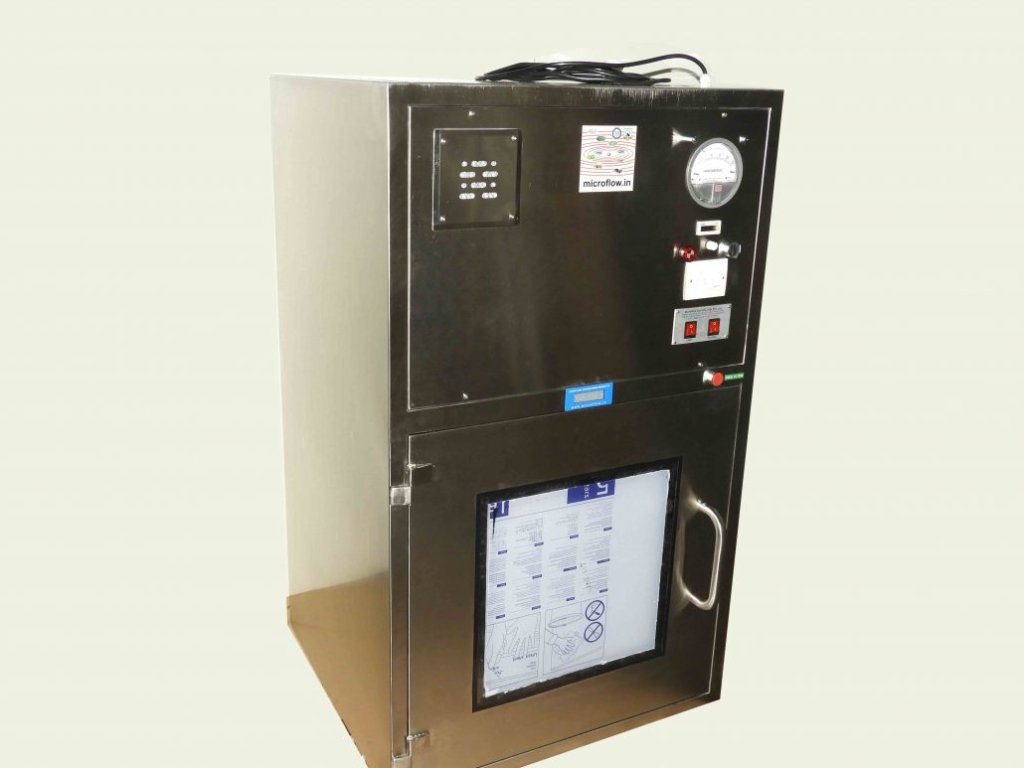

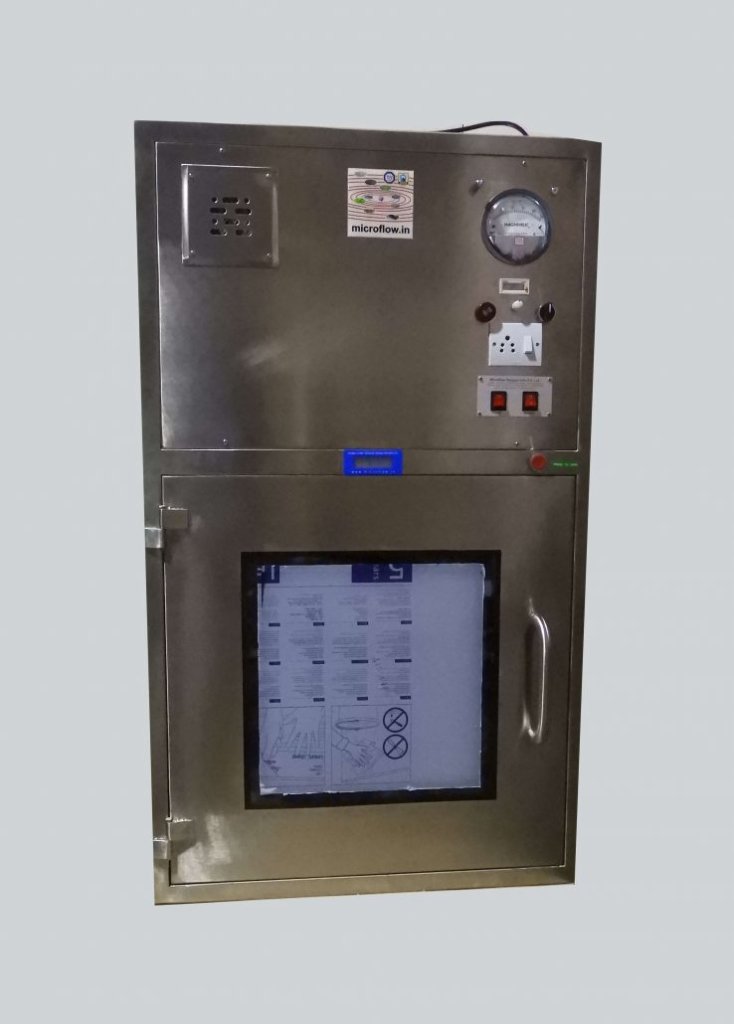

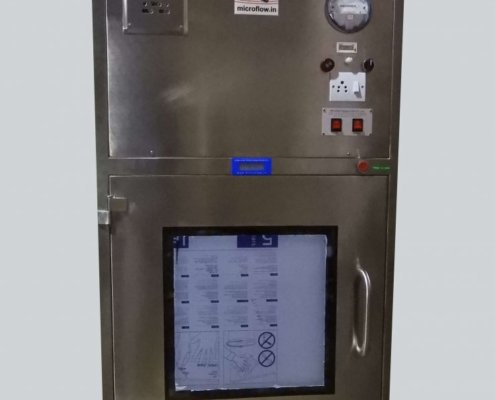

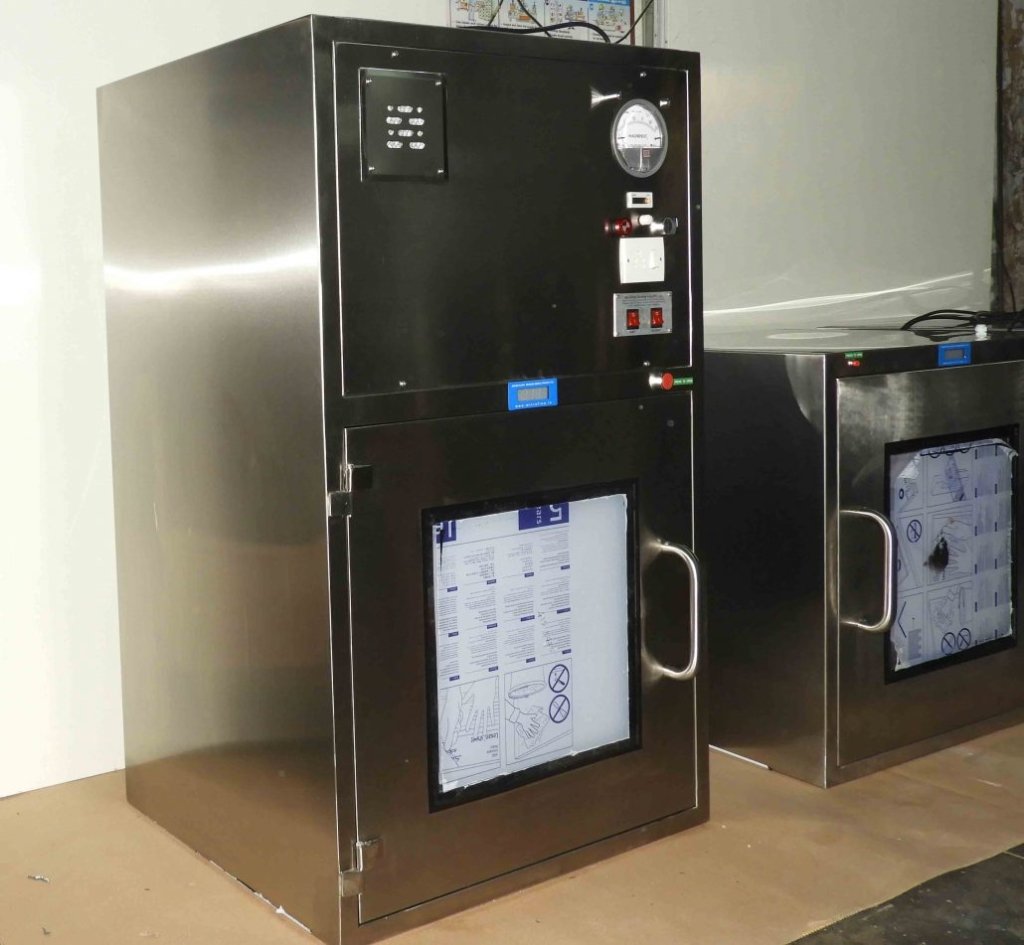

Our Gallery
Technical Features
| MATERIAL OF CONSTRUCTION (MAIN BODY) | MODEL NO | DIMENSIONS | |
|---|---|---|---|
| EXTERNAL (W X D X H) | INTERNAL (W X D X H) | ||
| CRCA Powder Coated GI Powder Coated Stainless Steel 304 |
MFD-V-600 | 750 x 900 x 1450 mm | 610 x 610 x 610 mm |
| MFD-V-900 | 1050 x 900 x 1450 mm | 915 x 610 x 610 mm | |
| MFD-V-1200 | 1350 x 900 x 1450 mm | 1220 x 610 x 610 mm | |
| MFD-V-1800 | 1950 x 900 x 1450 mm | 1830 x 610 x 610 mm | |
| Units available with Microprocessor Control also for the above mentioned models | |||
| Material of Construction (Work Table) | Stainless Steel 304 | ||
| Average Air Velocity | 90 ± 20% FPM | ||
| HEPA / ULPA | Efficiency 99.997% / 99.999% | ||
| Class Level | ISO 3 / 5 (Class 100) | ||
| Noise Level | 65 ± 5 dB | ||
| Electrical | 230 V, 50 Hz, Single Phase | ||
| Standards | US FED STD 209 E, ISO 14644-1, IEST- RP-CC-002-2, BSI | ||
| Certifications | CE & ISO | ||
